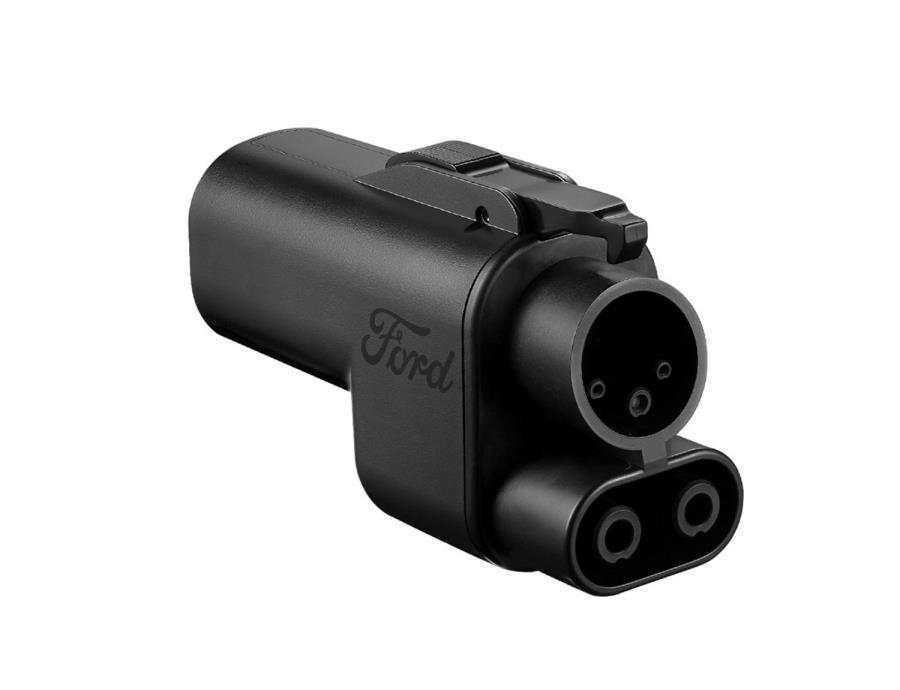

Ford Fast Charging Adapter (NACS)

Part Number: VRK9Z10E826A
Supersession(s): VRK9Z-10E826-A; VRK9Z10E805B

  • OEM-certified adapter
  • Rated for up to 500 amps and 1,000 volts
  • Lightweight and easy to carry in your glove box
  • Ford Owners can activate Tesla Superchargers through FordPass® App or the Public Charging App on your vehicle's touchscreen
  • For more information visit Fast Charging Adapter Frequently Asked Questions
  • NOTE: Adapter is not compatible with Level 1 or Level 2 Alternating Current (AC) chargers, including Tesla Destination Chargers and home chargers with NACS connectors

Warranty Info
  • 3 year from purchase date (or delivery date in California).
  • Warranty return requests can be initiated by calling 1-800-392-FORD (3673) and, when prompted, say “Charging”.?


How to Use
To Start Charging:
  • Find – Use the FordPass® App or the in-vehicle Public Charging App to find designated Tesla Superchargers.
  • Attach – Attach the adapter to the Tesla Supercharger cord. Push until you hear a click.
  • Open – Open your EV charge port door and flip down the dust cap.

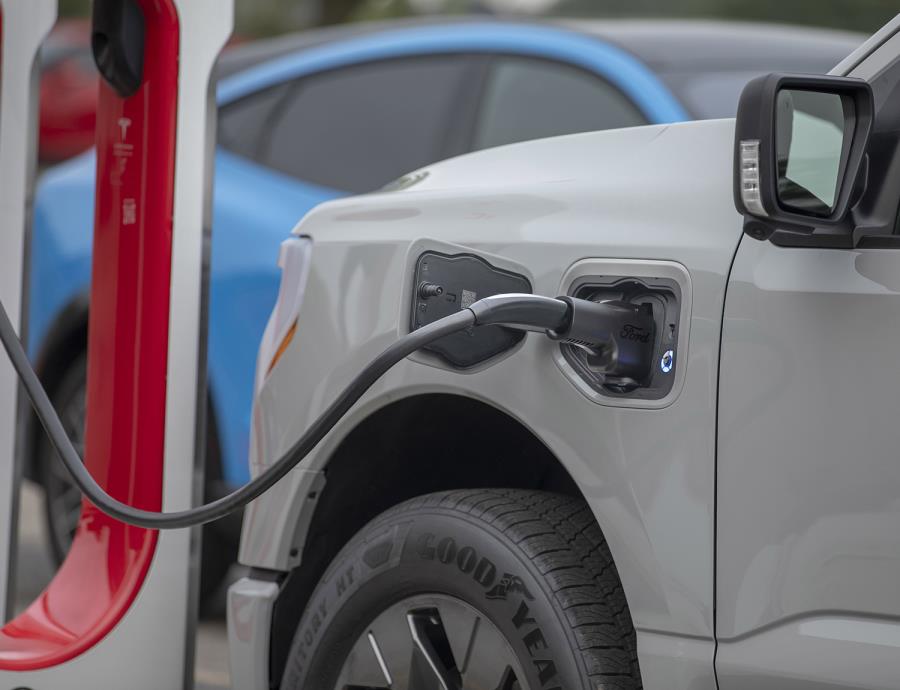

  • Plug in – Push the adapter into the charge port until it clicks. With Plug & Charge, charging starts automatically.
To Disconnect the Adapter:
  • Stop – Stop charging by pressing the unlock button on the vehicle charge port.
  • Release – Remove the adapter from the charge port by pressing the release lever on the top of the adapter.
  • Detach – Detach the adapter from the Tesla Supercharger cord by pressing the cable release lever.


Rated Current500 A
Rated Input / Output1,000 V
Weatherproof RatingIP67
Operating Temperature-22°F to 122°F
Storage Temperature-40°F to 185°F
ConnectorCCS1
InletNACS Supercharger
Dimensions6.9 in. x 2.7 in. x 4.1 in.
Weight2 lbs.
MaterialsPC/PA66/Copper

Fits F-150, Mustang Mach-E, Transit

This Product Is Not Currently Available
